Visual Basic Lanjutan Praktikum 6 - Object Oriented Programming (OOP)

Laptopinformatika.com - Kemarin kita sudah bahas VB yang teori 6 dan sekarang kita lanjutkan dengan praktikum 6. Hari ini saya akan memberikan konten yang berisi tentang "Membuat Class dan diakses dari Form GUI" Oke langsung saja kita bahas yah tanpa banyak basa-basi hehehe, check it out...

Untuk Latihan-latihan sebelumnya ada di link bawah ini, jika kalian ingin mempelajari semuanya silahkan klik link di bawah ini :

1. Visual Basic Lanjutan Teori 1 Variabel dan Type Data
2. Visual Basic Lanjutan Praktikum 1 Operator
3. Visual Basic Lanjutan Teori 2 Percabangan (Struktur If-Then, If-Then-Else, Nested IF)
4. Visual Basic Lanjutan Praktikum 2 Percabangan (IIF dan Select Case)
5. Visual Basic Lanjutan Teori 3 - Perulangan
6. Visual Basic Lanjutan Praktikum 3 - Perulangan (Do While - Loop)
7. Visual Basic Lanjutan Teori 4 - Array Dimensi Satu
8. Visual Basic Lanjutan Praktikum 4 - Array Dimensi Dua
9. Visual Basic Lanjutan Teori 5 - Procedure dan Function
10. Visual Basic Lanjutan Praktikum 5 - Procedure dan Function
11. Visual Basic Lanjutan Teori 6 - Object Oriented Programming (OOP)

Read More : Cara Mengetahui Password WiFi dengan CMD 100% Berhasil Terbaru

OOP GUI

1. Buatlah Class di Project_OOP / WindowsApplication1 dengan nama ClassDay.

2. Buatlah Class di Project_OOP / WindowsApplication1 dengan nama ClassDay.

3. Buatlah Form di Project_OOP / WindowsApplication1 dengan nama FormHari.

Read More : 5 Kesalahan Umum Prototipe Cepat Yang Perlu Anda Ketahui

Latihan 1

• Source Code

Form Class

Public Class ClassDay
    Dim hari As String

    Public Sub GetDay() 'laptopinformatika.com
        hari = "Senin"
        MessageBox.Show("Hari ini adalah : " & hari)
    End Sub
End Class

Form1

Public Class Form1

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Me.Text = "LaptopInformatika.com"
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        'Mendeklarasikan variable dan mereferensikan ke ClassDay
        Dim hari As New ClassDay 'laptopinformatika.com
        hari.GetDay()
    End Sub

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        Dim message As String
        message = MsgBox("Are you sure want to exit ?", vbYesNo, "laptopinformatika.com")
        If message = vbYes Then 'laptopinformatika.com
            End
        End If
    End Sub
End Class

Latihan 2

• Source Code

Form Class

Public Class ClassCircle
    Dim phi As Decimal = CDec(3.14) 'laptopinformatika.com
    Dim r As Decimal

    Public Sub GetArea()
        phi = CDec(3.14) 'laptopinformatika.com
        r = 10
        MessageBox.Show("Luas Lingkaran = " & phi * r ^ 2)
    End Sub
End Class

Form2

Public Class Form2

    Private Sub Form2_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Me.Text = "LaptopInformatika.com"
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim lingkaran As New ClassCircle 'laptopinformatika.com
        lingkaran.GetArea()
    End Sub

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        Dim message As String
        message = MsgBox("Are you sure want to exit ?", vbYesNo, "laptopinformatika.com")
        If message = vbYes Then 'laptopinformatika.com
            End
        End If
    End Sub
End Class

Read More : Cara Mengaktifkan Wifi yang ter-Disable di Windows 10 Terbaru 2020

Latihan 3

• Source Code

Form Class

Public Class ClassMahasiswa
    'Deklarasi Variable
    Private nama As String 'laptopinformatika.com

    'Membuat Method
    Public Function getNama()
        Return nama
    End Function

    Public Sub setNama(ByRef nm As String)
        nama = nm 'laptopinformatika.com
    End Sub
End Class

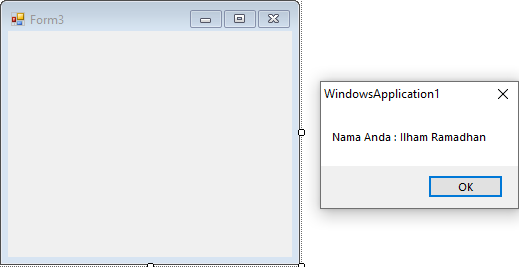

Form3

Public Class Form3
    Public mahasiswa As New ClassMahasiswa

    Private Sub Form3_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Me.Text = "LaptopInformatika.com"

        mahasiswa = New ClassMahasiswa

        mahasiswa.setNama("Ilham Ramadhan")
        MsgBox("Nama Anda : " + mahasiswa.getNama())
    End Sub
End Class

Kasus 1

• Source  Code

Form Class

Public Class ClassLuasSegitiga
    Dim alas As Decimal
    Dim tinggi As Decimal

    Public Sub GetLuas() 'laptopinformatika.com
        alas = 13
        tinggi = 14
        MessageBox.Show("Luas Segitiga = " & 0.5 * alas * tinggi)
    End Sub
End Class

Form4

Public Class Form4

    Private Sub Form4_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Me.Text = "LaptopInformatika.com"
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim segitiga As New ClassLuasSegitiga
        segitiga.GetLuas()
    End Sub

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        Dim message As String
        message = MsgBox("Are you sure want to exit ?", vbYesNo, "laptopinformatika.com")
        If message = vbYes Then
            End
        End If
    End Sub
End Class

Oke mungkin segitu dulu ya untuk pelajarannya hari ini, semoga bermanfaat, thank you see you next again :D
